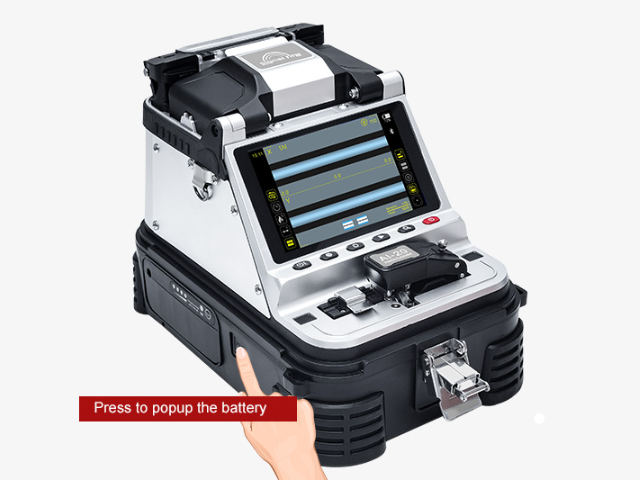

The AI-20, the fourth generation fiber fusion splicer developed by Signal fire, is the latest generation of fiber fusion splicer designed for full link integration. It combines Signal fire's latest research and development of a delayed return electric one-step cleaver with fiber fusion splicing, while integrating OPM and VFL functions. Combined with a nine in one signalfire fiber stripper, a combinable workbench and worktable, it truly becomes a compact, lightweight, and easy to operate fiber fusion splicer, which will greatly improve your work efficiency.
.jpg)
.jpg)
.jpg)
.jpg)

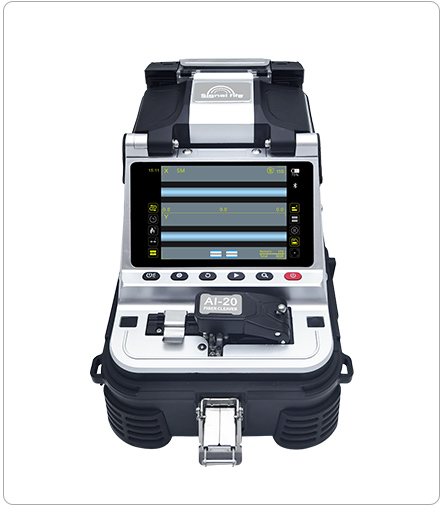

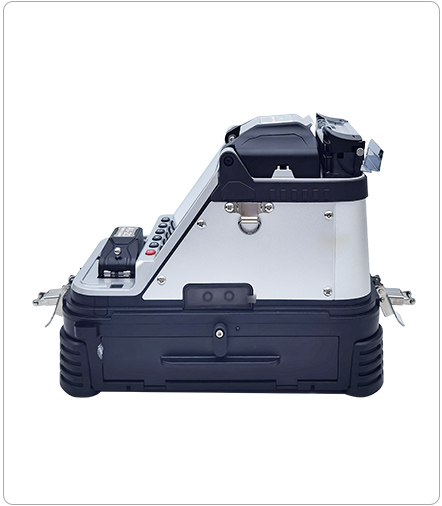

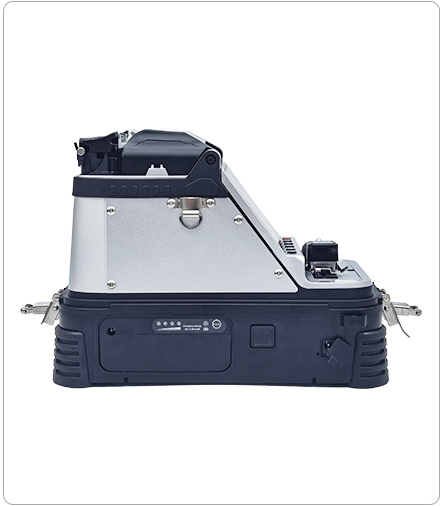

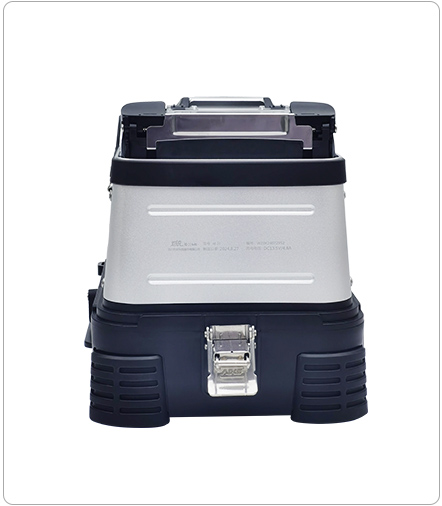

Signal fire AI-20 fusion splicer applies multiple of the latest patented technologies of Signal fire, and adopts a more advanced central processing unit, more advanced algorithms, and higher precision cameras. The weight of bare machine,tool case and complete set of accessories only 4.5kg, size of tool case is 25.5cmx16.5cmx23cm. In such a compact and compact situation, the combination design of workbench and bench has been achieved simultaneously. 1 second startup, 6 seconds rapid fusion, 15 seconds heating, 5-inch color high-definition LCD screen, 320x magnification, 7800mAh large capacity lithium battery can fuse and heat 240 cores, still performs well in harsh environments such as high altitude, dry, and cold.

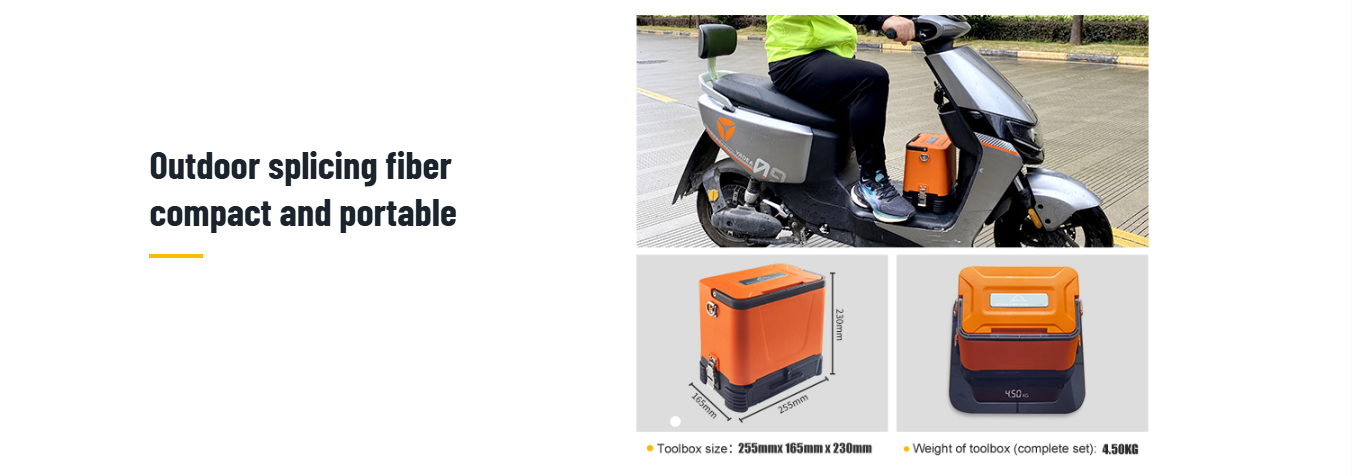

Compact and portable
Climbing high is also easy
.png)
Bench+support platform

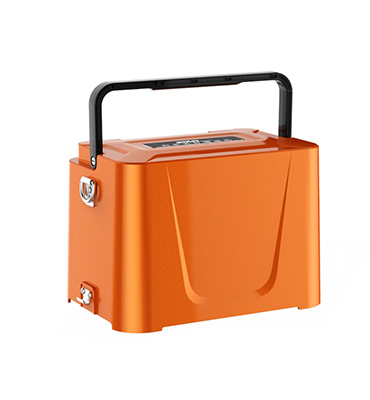

Can be used as a bench outdoor construction is also easy
1.jpg)

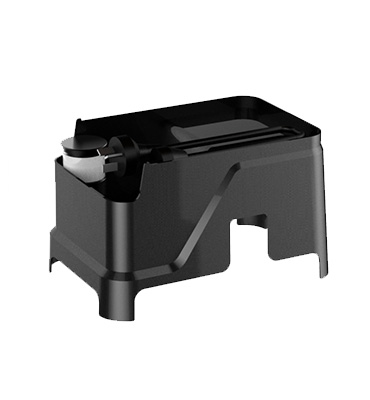

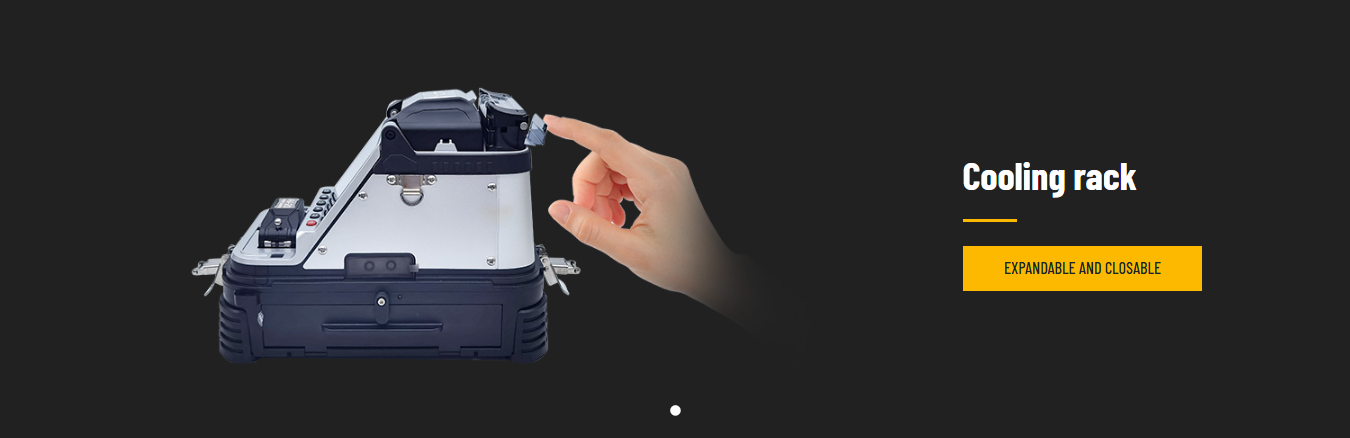

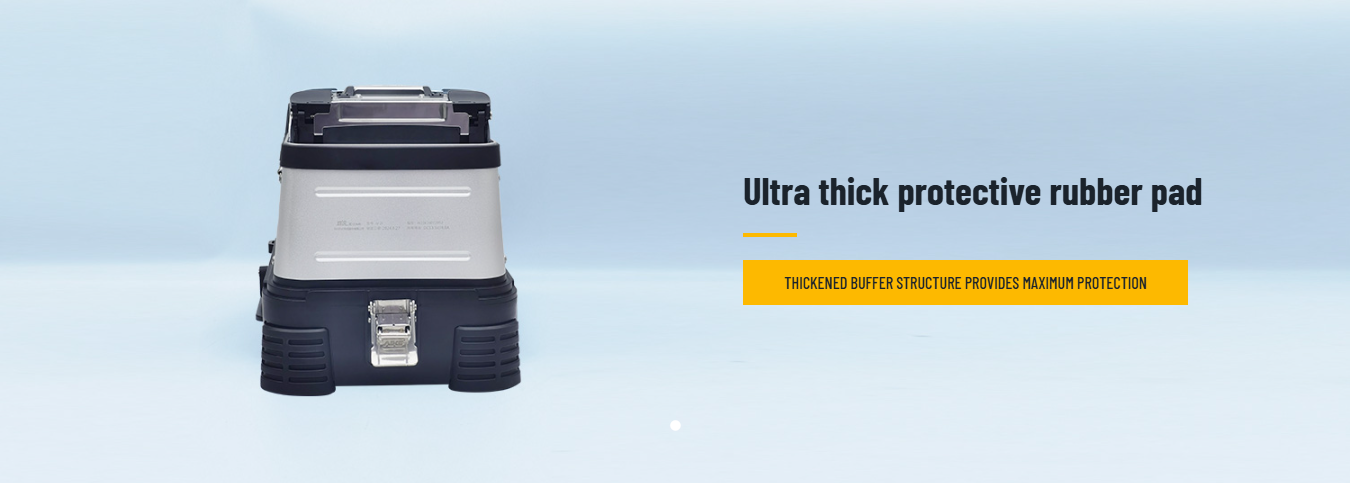

Host support / protection console

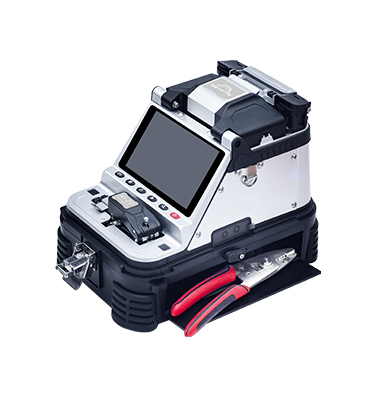

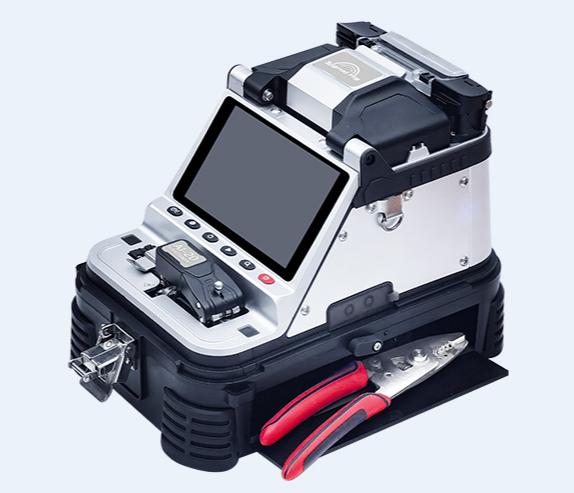

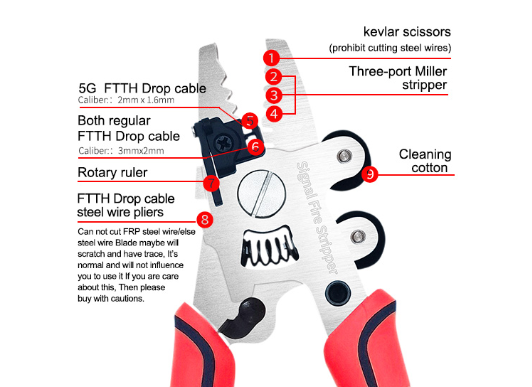

Equipped with 9-in-1 signal fire stripper

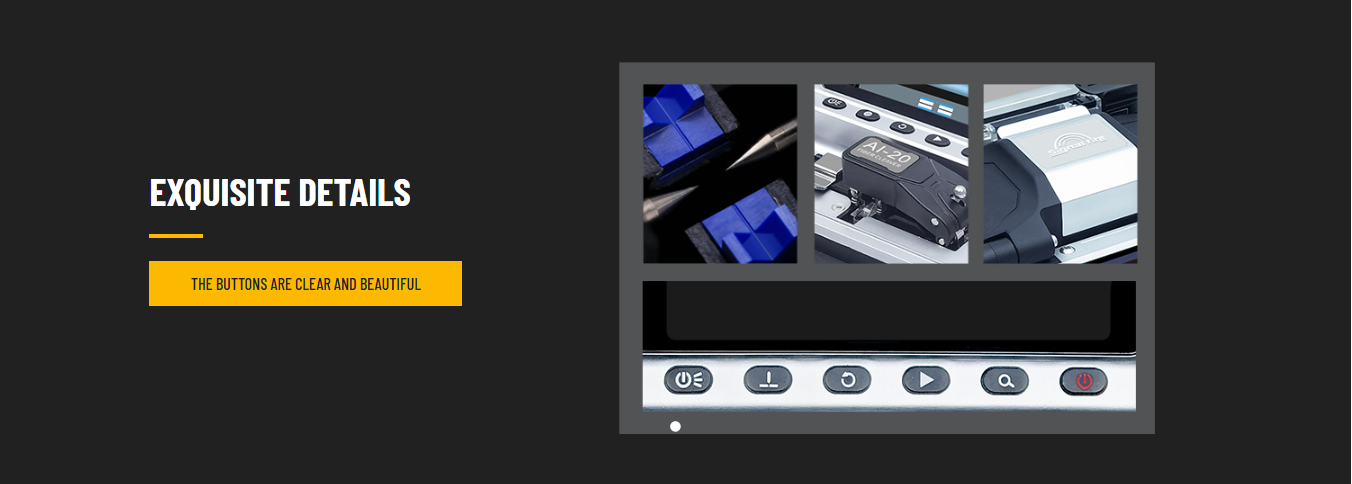

Signal fire new generation fiber fusion splicer has significantly reduced the
actual weight
and volume of the entire equipment by reducing auxiliary tools
and
improving the automation level, ultimately achieving a true
improvement in fusion quality
and efficiency.
This is the fourth generation fiber fusion splicer that we first launched,
and the core is full link integration design, highly integrated.
.jpg)

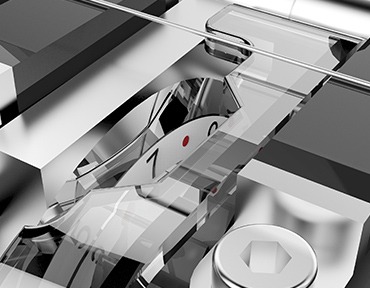

Cleaver blades surface automatically change when the current cutting point cut fiber more than 1000 times and continuously shown three times unqualified cutting results. Manual button operation, cleaver blades surface will change.Cleaver has 24 cutting points in total, current cutting point cut numbers, blades total cut numbers, Available within the APP.
.jpg)

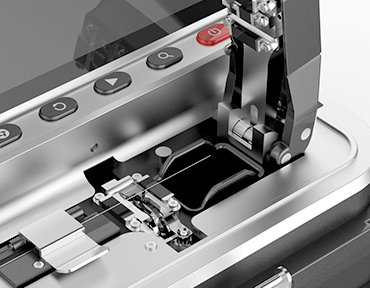

Perfectly solves the problem of traditional mechanical one-step cleaver back cutting scratching the fiber end face. The factory standard delay time is set to 0.5 seconds, and the adjustable range is 0.2 seconds to 2 seconds.
.jpg)

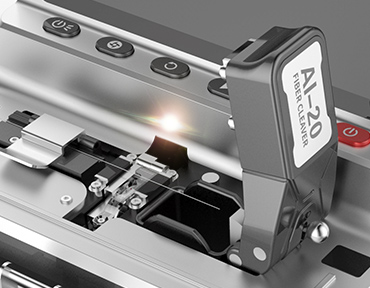

Brightness can be adjusted through APP.

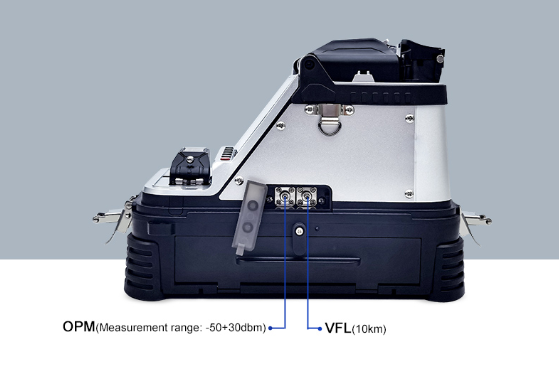

Effectively measure connection losses, verify continuity, and help
evaluate
fiber link transmission quality
Wavelength: 850nm; 1300nm, 1310nm,1490nm, 1550nm, 1625nm
power: 15mW, 2Hz flashing and steady on mode

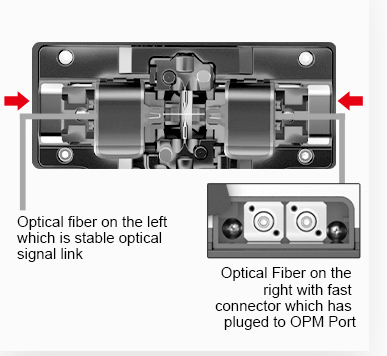

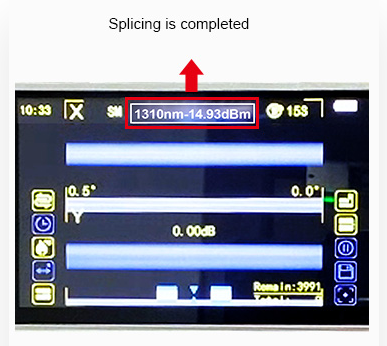

Only applicable to environments with stable optical signal link from front
Reduce carrying and improve work efficiency

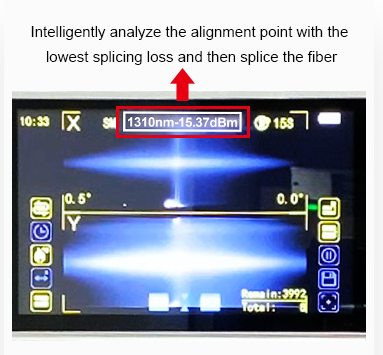

| Fiber alignment | Core/cladding |
|---|---|
| Motor number | 6 motors / Accurate fiber alignment: 0.1μm |
| Splicing time | 6s |

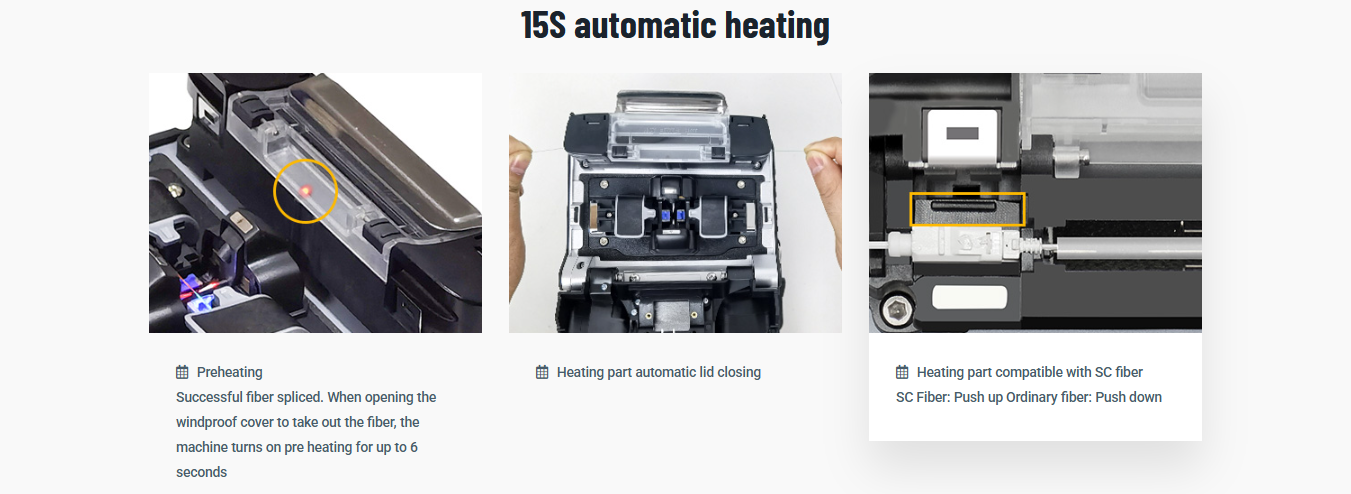

| Heating mode | 15s, can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber. |
| Cladding diameter | 80-150μm |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Splicing mode | Automatic focusing core alignment, conventional/high precision welding |
| Splicing way | Automatic, Semi-automatic |

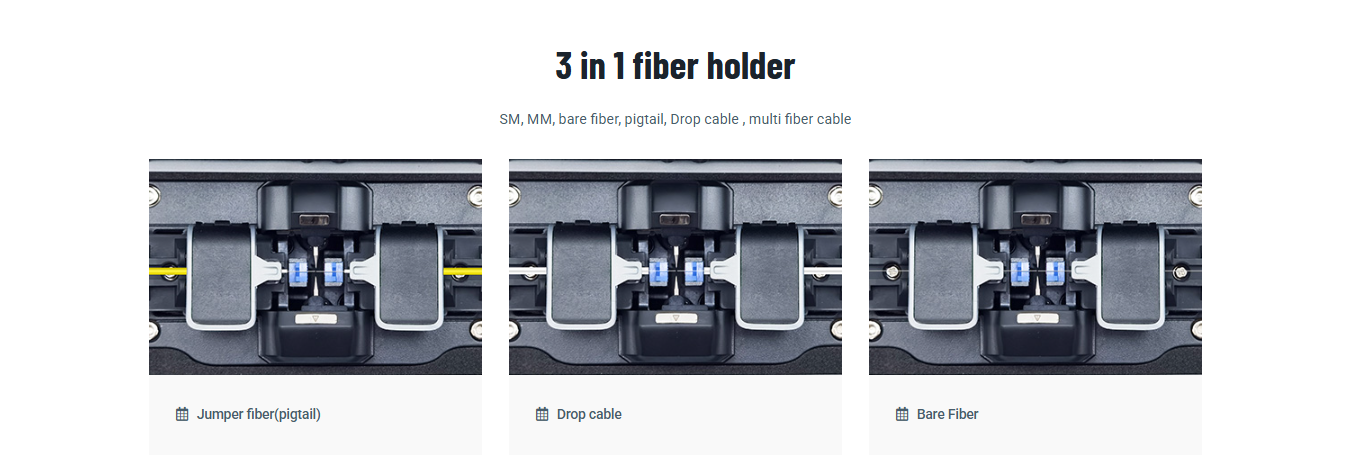

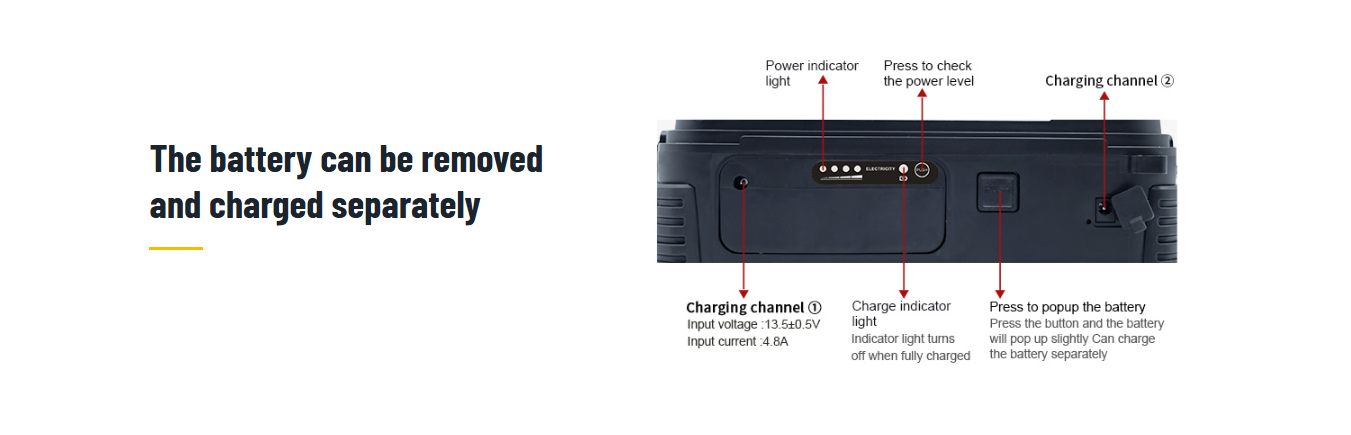

| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber, drop cable |
| Fiber cleaver | High precision delay return electric one-step fiber cleaver |
| VFL | The machine comes with: power: 15mW, 2Hz flashing and steady on mode |
| OPM | Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm / Measurement range: -50+30dbm Absolute error: <0.3dB (-50dbm ~+3dBm range) |
| Battery capacity | 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 240 cores |
| Magnification | 320x (X or Y axis single display) 200x (x and Y axis dual display) |
| Fiber diameter | Coating diameter: 80-150μm / Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-16mm / coating layer 250-1000μm: 16mm |
| Heat shrink tube | 60mm, 50mm, 40mm, 25mm |
| Tensile testing | 2N standard |
| Display | 5-inch TFT color screen |
| External lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction |
| Mobile charging | The USB port can charge mobile devices such as mobile phones |
| Boot time | 1 second, boot can enter the working mode |
| Data storage | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Return loss | Better than 60dB |
| Protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| Work environment | Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s |
