Signal fire OTDR ZS1000 series is a precision instrument designed for fiber optic maintenance. It features five essential tools: OTDR, iOLA, Optical Power Meter, Light Source, and LED Flashlight.
With a 20dB dynamic range and testing capability up to 80km, it's perfect for fault location and joint attenuation measurement. The 3.5-inch HD touch screen makes operation smooth and intuitive.
.jpg)

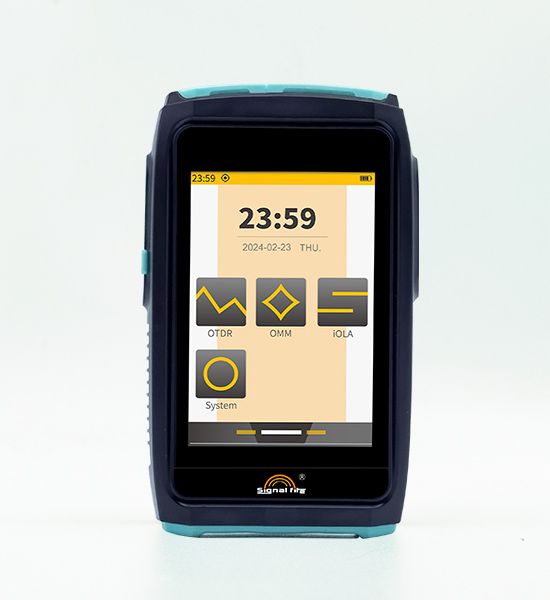

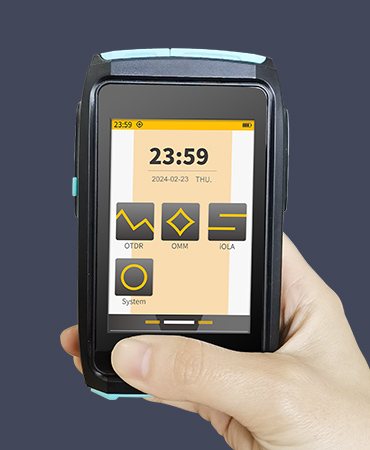

Mini and compact, comprehensive and powerful
.jpg)
Autonomous algorithm chip
.jpg)

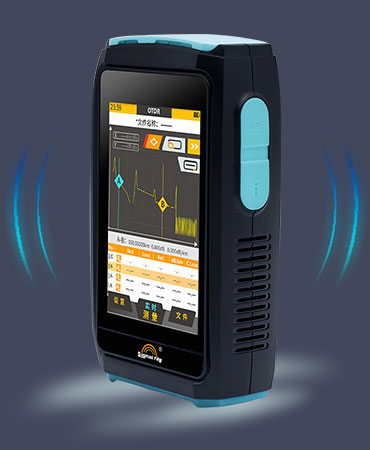

Support live test
.jpg)

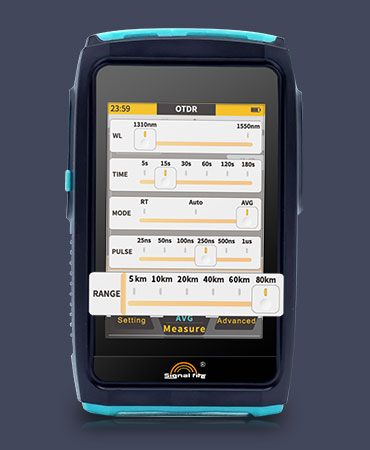

Max. 80km range setting
.jpg)

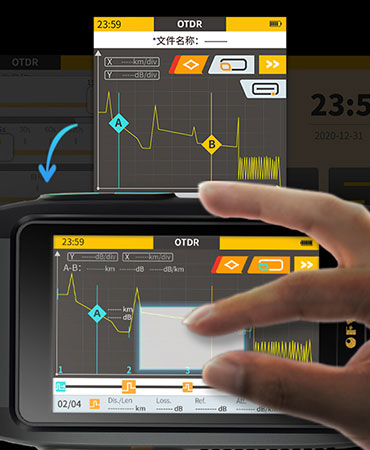

3.5 inch HD multi-touch screen
.jpg)

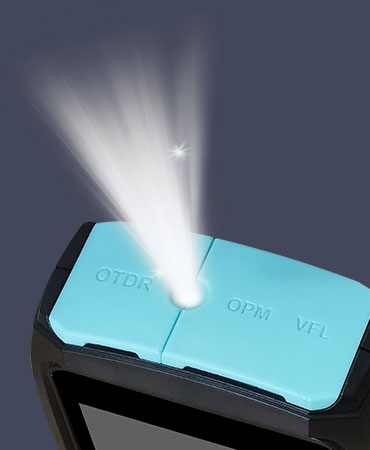

LED light
| Dynamic Range | 20dB |
|---|---|
| Test Range | 100m ~ 80km |
| Wavelength |
ZS1000-A: 1550/1310(±20nm) double wave ZS1000-B: 1550(±20nm) single wave |
| OTDR/OLS Connector | SC |
| Pulse Width | 5ns ~ 20µs |
| Measurement Time | 5s ~ 180s |
| Measurement Mode | Real time, Average, Automatic |
| Attenuation Dead Zone | 12m |
| Event Dead Zone | <3m |
| Sampling Point | 8000 |
| Input Light Detection | Support |
| Maximum allowable power for light testing (Only ZS1000-B support) |
1277nm <10dBm | 1310nm <10dBm 1490nm <10dBm | 1577nm <10dBm |
| iOLA | Only ZS1000-A support |
| OPM Power Range | -50 ~ 26dBm |
| OPM Response Wavelength | 700nm ~ 1700nm |
| OPM Calibration Wavelength | 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm |
| OPM Power Uncertainty | ±0.2dB |
| VFL | 10mW |
| LCD | 3.5-inch HD touch screen |
| Type-C Cable | Type-C |
| Self-calibration | Support |
| LED Light | Support |
| Expandable Storage | USB (Temporary storage) |
| Working Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Relative Humidity | <90% |
| Size (H×W×D) | 117mm × 70mm × 33mm |
| Weight | About 217g |
