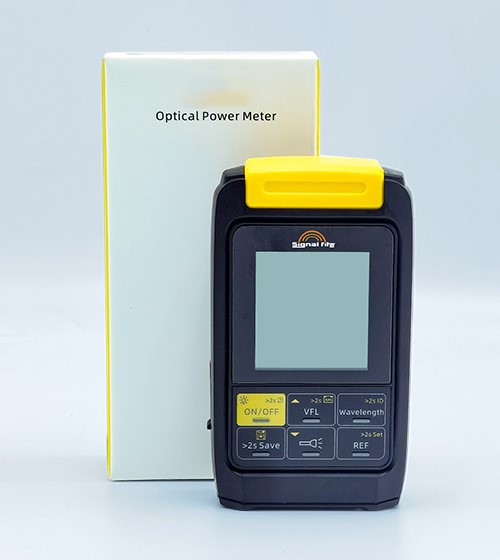

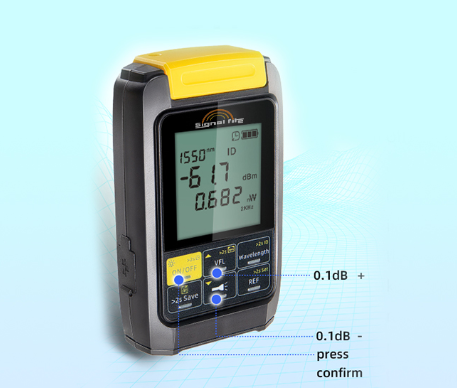

4-in-1 optical power meter MINI all-in-one machine: optical power meter, red light source, LED flashlight, network test.
Every effort is for more comfortable use: 1. Mainstream Type-c interface, built-in lithium battery. 2. High-precision optical power meter, six-wavelength test, dynamic range 80db, measurement error less than ±0.2db, support FC/SC/ST interface. 3. Stable luminescence and strong light source. 4. The network sequencing module is integrated into the exterior. 5. LED light, a good helper at night. 6. 500 sets of data storage, view at any time, cyclic coverage. 7. Weight is only 95g, size is 100mmX59mmX28mm
.jpg)
500 loop coverage
.jpg)

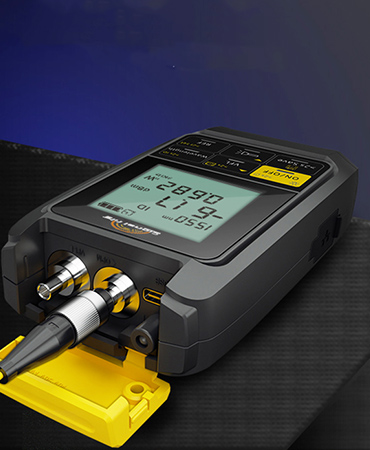

Stable and strong light source
.jpg)

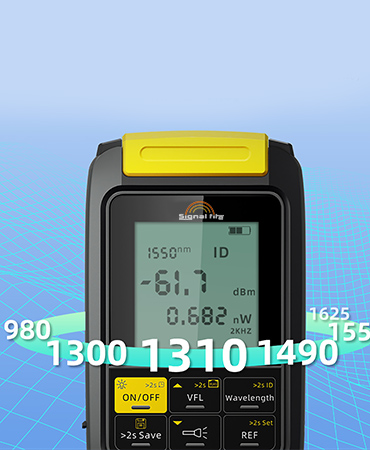

Wavelength memory function
.jpg)

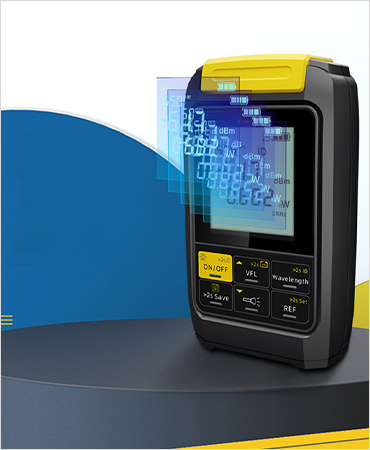

Store and view at any time
.jpg)

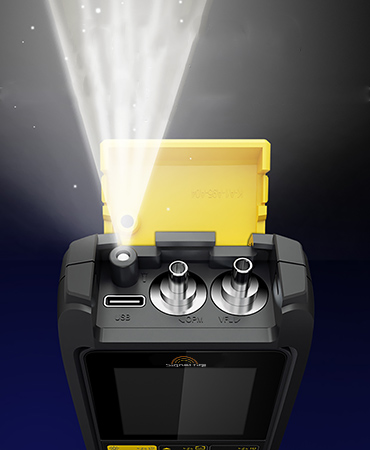

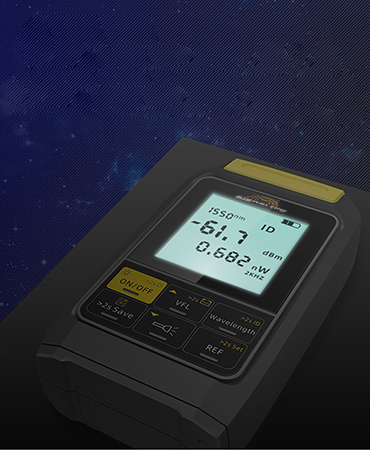

No fear of dim surroundings
.jpg)
Good helper at night
BUILT-IN LITHIUM BATTERY
03H QUICK CHARGE
60H USE (ONLY OPM)
90D EXTRA LONG STANDBY (IN FULL POWER SHUTDOWN STATE)

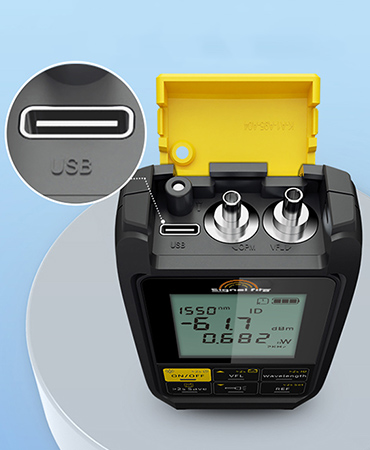

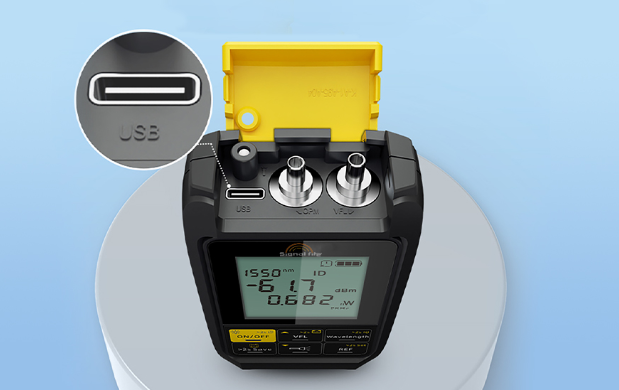

USB

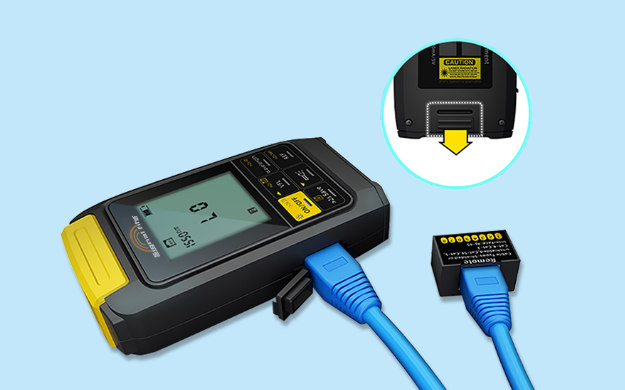

BUILT-IN REMOTE CABLE MODULE, INTEGRATED WITH THE HOST
.jpg)

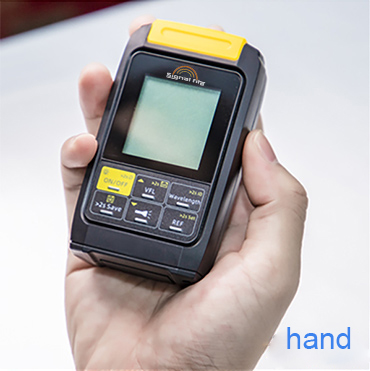

hand
.jpg)

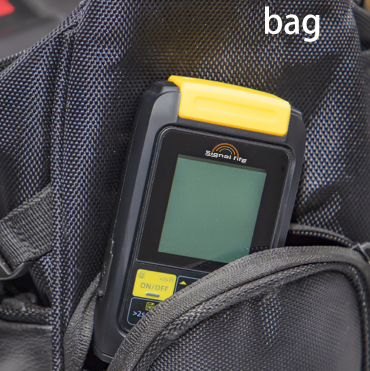

bag
.jpg)

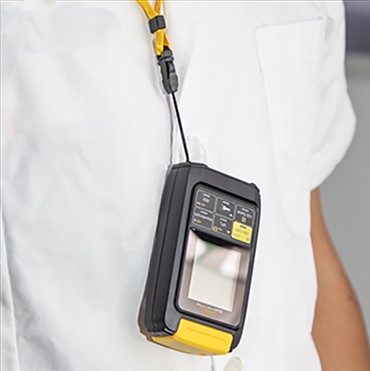

lanyard
| Model | ZS-20C-V20 |
|---|---|
| PD Type | InGaAs |
| OPM Connector | 2.5mm Universal connector |
| Calibrated | 850/1300/1310/1490/1550/1625nm |
| Display Range | -50~+30dBm |
| Resolution | 0.01dB |
| Accuracy | ±0.2dB |
| Modulation Test | 270/330/1k/2kHz |
| VFL Connector | 2.5mm Universal connector |
| VFL Power | 20mW |
| LED | Yes |
| RJ-45 Cable Test | Yes |
| Interface | Type-C |
| Battery | Lithium battery |
| Storage Temperature | -20~60℃, <90%RH |
| Operating Temperature | -10~50℃, <90%RH |
| Weight | 95g |
| Size | 100mm × 59mm × 28mm |
