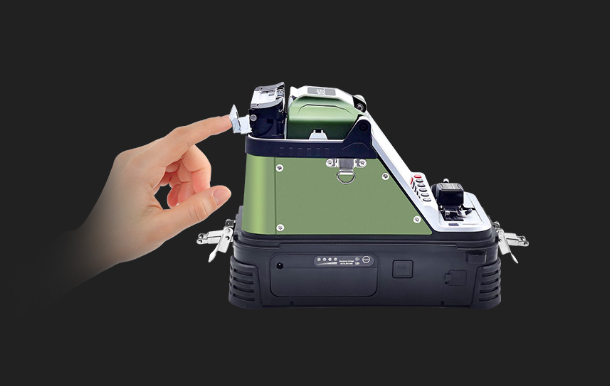

Cooling rack
EXPANDABLE AND CLOSABLE
☰

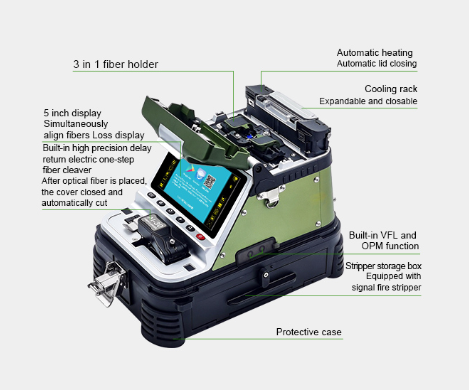

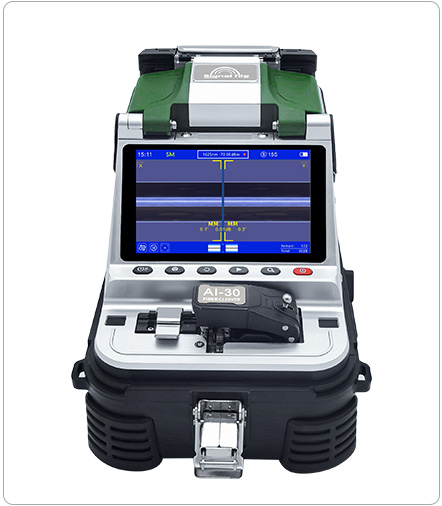

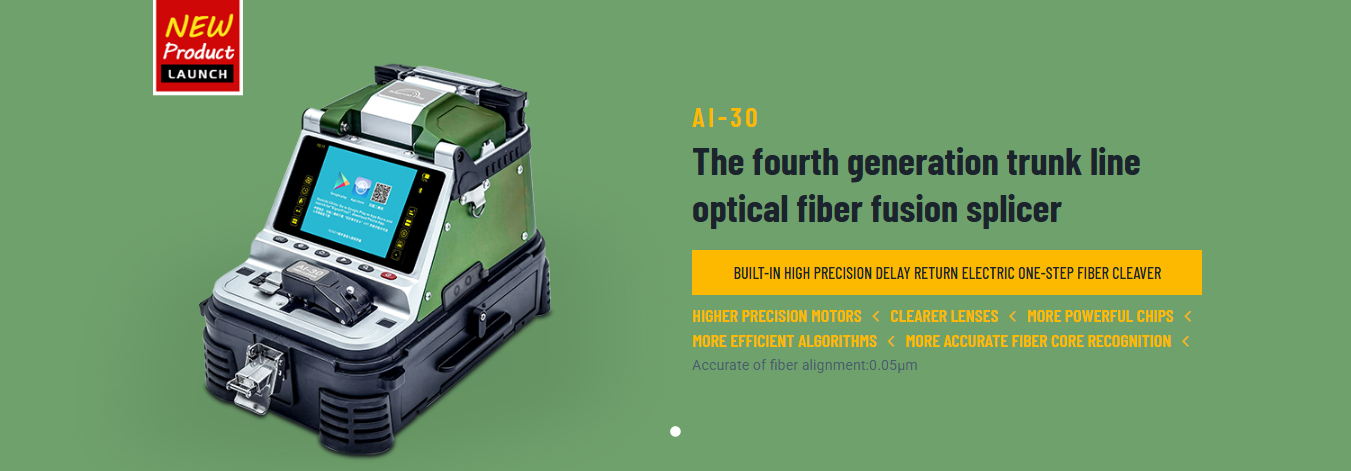

The AI-30, the fourth generation fiber fusion splicer developed by Signal Fire, is designed for full link integration. It integrates OPM and VFL functions, combined with a nine-in-one Signal Fire fiber stripper and a compact workstation to greatly improve your work efficiency.

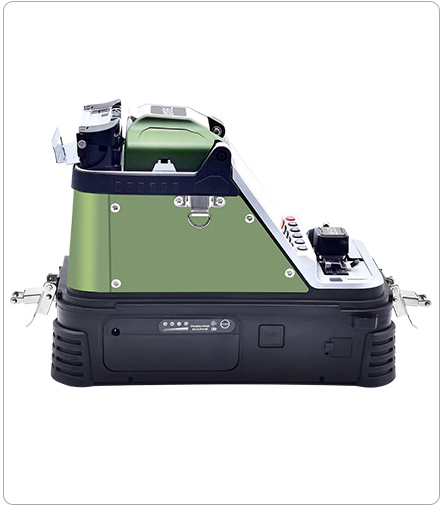

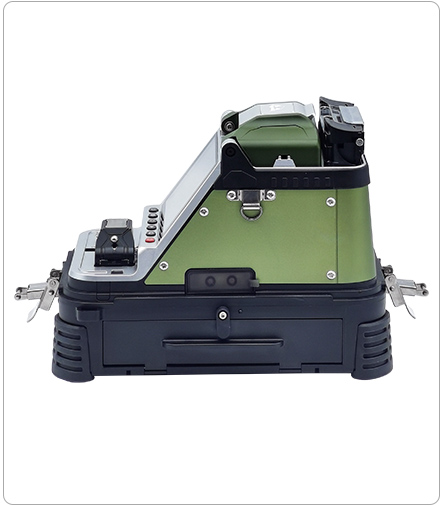

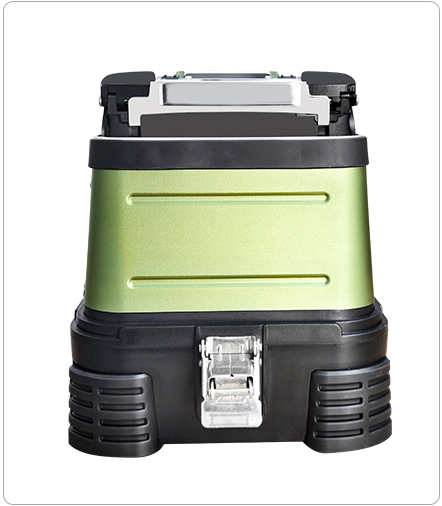

.jpg)
.jpg)
.jpg)
.jpg)

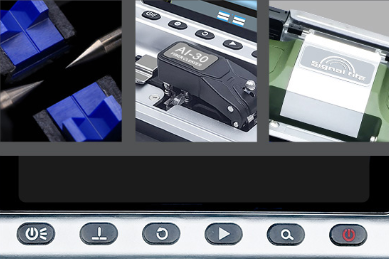

Signal fire AI-30 fusion splicer applies multiple of the latest patented technologies of Signal fire, and adopts a more advanced central processing unit, more advanced algorithms, and higher precision cameras. Especially, the AI-30 fiber core is clearer and more visible, and the fusion loss and stability are better. It is fully capable of longer distance mainline fiber optic cable fusion splicing projects.

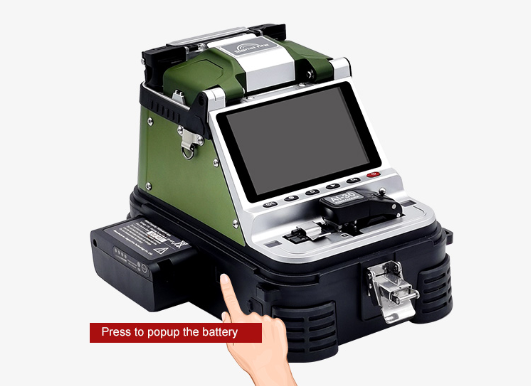

The weight of bare machine, tool case and complete set of accessories only 4.5kg, size of tool case is 25.5cm x 16.5cm x 23cm. In such a compact and compact situation, the combination design of workbench and bench has been achieved simultaneously. 1 second startup, 6 seconds rapid fusion, 15 seconds heating, 5-inch color high-definition LCD screen, 320x magnification, 7800mAh large capacity lithium battery can fuse and heat 240 cores, still performs well in harsh environments such as high altitude, dry, and cold.

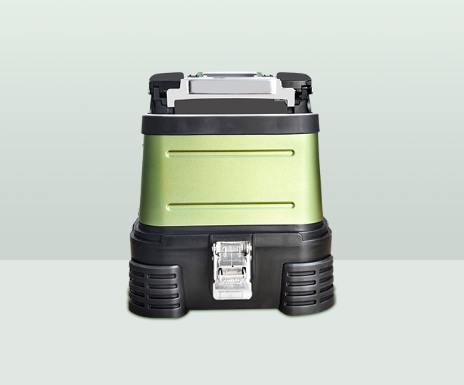

Compact and portable
Climbing high is also easy
.png)
Bench+support platform
.jpg)

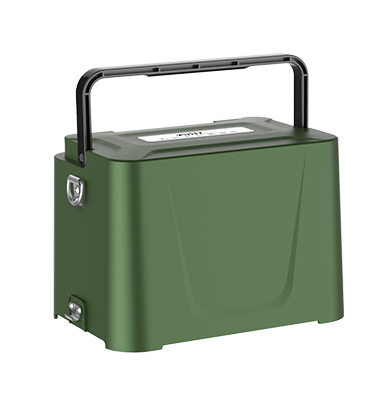

Can be used as a bench outdoor construction is also easy

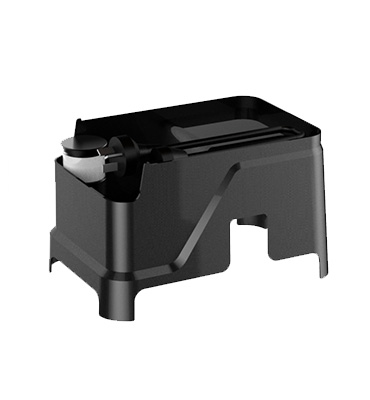

Host support / protection console
.jpg)

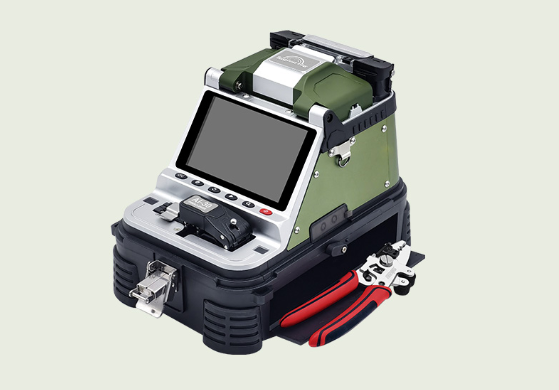

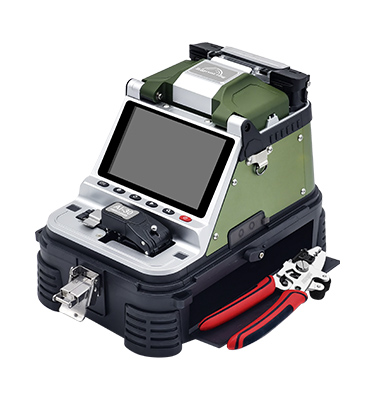

Equipped with 9-in-1 signal fire stripper
Used in telecom, mobile, Unicom, radio and television operators, posts and telecommunications, railway engineering companies and institutions of optical cable line construction, line maintenance, emergency repair, security monitoring and research institutes research, teaching.
Signal fire new generation fiber fusion splicer has significantly reduced the actual weight and volume of the entire equipment by reducing auxiliary tools and improving the automation level, ultimately achieving a true improvement in fusion quality and efficiency.
This is the fourth generation fiber fusion splicer that we first launched, and the core is full link integration design, highly integrated.
.jpg)

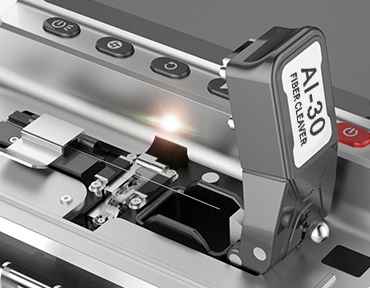

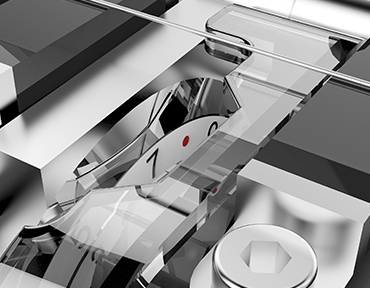

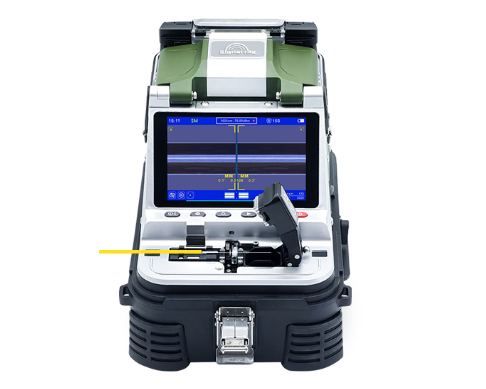

Cleaver blades surface automatically change when the current cutting point cut fiber more than 1000 times... [Available within the APP].
.jpg)

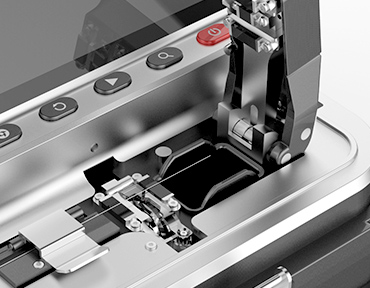

Perfectly solves the problem of traditional mechanical one-step cleaver back cutting scratching the fiber end face.
.jpg)
Brightness can be adjusted through APP.

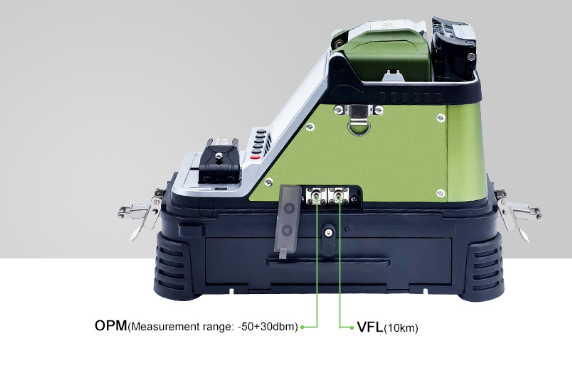

Effectively measure connection losses, verify continuity, and help evaluate fiber link transmission quality
Wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
power: 15mW, 2Hz flashing and steady on mode
Only applicable to environments with stable optical signal link from front
Intelligently analyze the alignment point with the lowest splicing loss and then splice the fiber
Splicing is completed
Optical fiber on the left which is stable optical signal link
Optical Fiber on the right with fast connector which has plugged to OPM Port
Reduce carrying and improve work efficiency

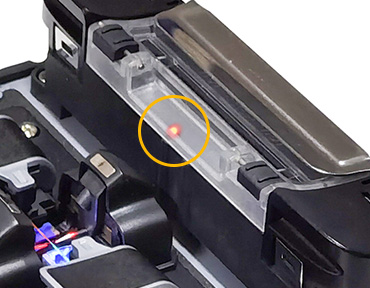

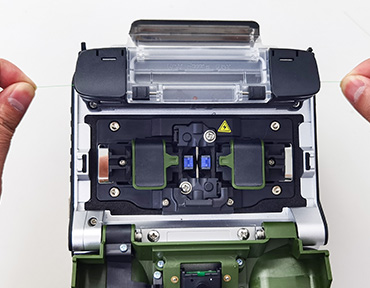

Successful fiber spliced. When opening the windproof cover to take out the fiber, the machine turns on pre-heating for up to 6 seconds.
.jpg)

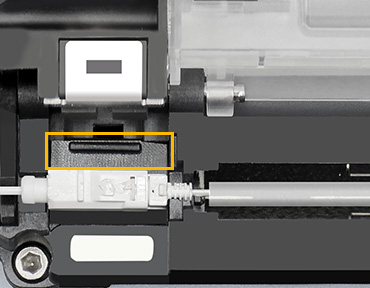

SC Fiber: Push up Ordinary fiber: Push down

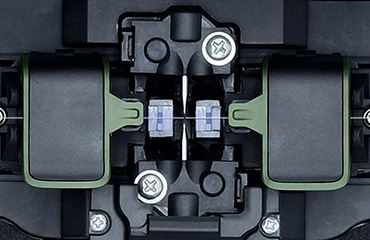

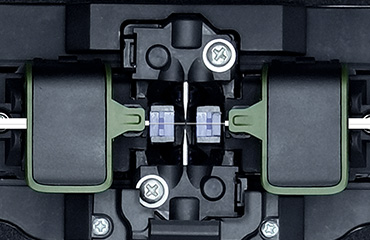

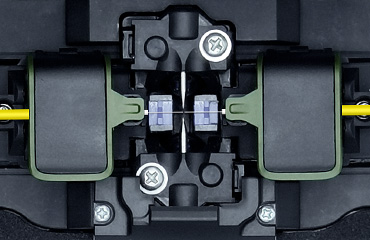

SM, MM, bare fiber, pigtail, Drop cable, multi fiber cable
.jpg)
.jpg)
.jpg)

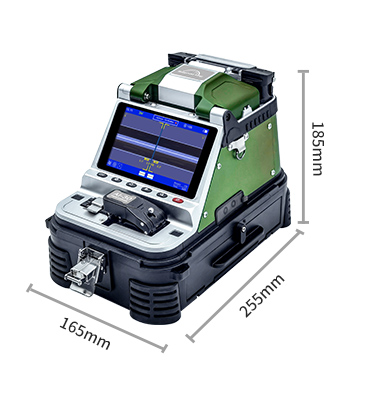

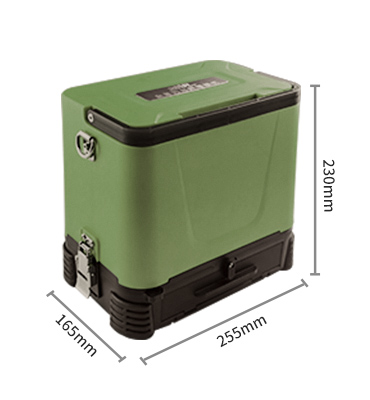

● Toolbox size: 255mm x 165mm x 230mm
● Weight of toolbox (complete set): 4.50KG
| Fiber alignment | Core/cladding |
|---|---|
| Motor number | 6 motors/Accurate of fiber alignment :0.05μm |
| Splicing time | 6s |
| Heating mode | 15s, can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber. |
| The cladding diameter | 80-150μm |
| Splicing loss | 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Splicing mode | Automatic focusing core alignment, conventional/high precision welding |
| Splicing way | Automatic, semi-automatic |
| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber, drop cable |
| Fiber cleaver | High precision delay return electric one-step fiber cleaver |
| VFL | The machine comes with: power: 15mW, 2Hz flashing and steady on mode |
| OPM | Wavelength: 850nm、1300nm、1310nm、1490nm、1550nm、1625nm、980nm、1270nm、1577nm、1650nm/Measurement range: -50+30dbm Absolute error: <0.3dB (-50dbm ~+3dBm range) |

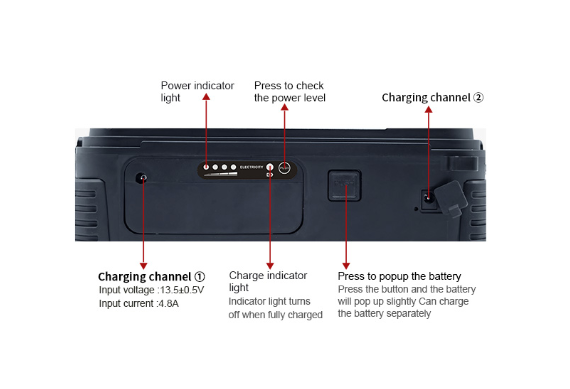

| Battery capacity | 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 240 cores |
| Magnification | 320x (X or Y axis single display) 200x (x and Y axis dual display) |
| Fiber diameter | Coating diameter: 80-150μm/Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm |
| Heat shrink tube | 60mm、50mm、40mm、25mm |
| Tensile testing | standard 2N |
| Display | 5 inch TFT color display screen |
| External lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction |
| Charge mobile device | The USB port can charge mobile devices such as mobile phones |
| Boot time | 1s, boot can enter the working mode |
| Data is stored | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless communication | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management function | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Return loss | Better than 60 db |
| Product protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| The work environment | Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s |
.jpg)
Machine weight: 3.09kg
Weight of toolbox (complete set): 4.5kg
.jpg)

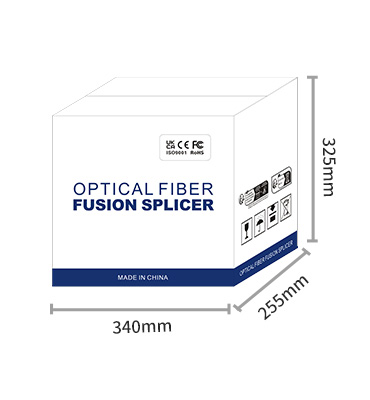

Total weight: 5.5kg
Once you buy our Fusion Splicer machine, we offer original packaging new machine, the products meet industry-related quality standards and commitment to enjoy the following services provided by our company:
