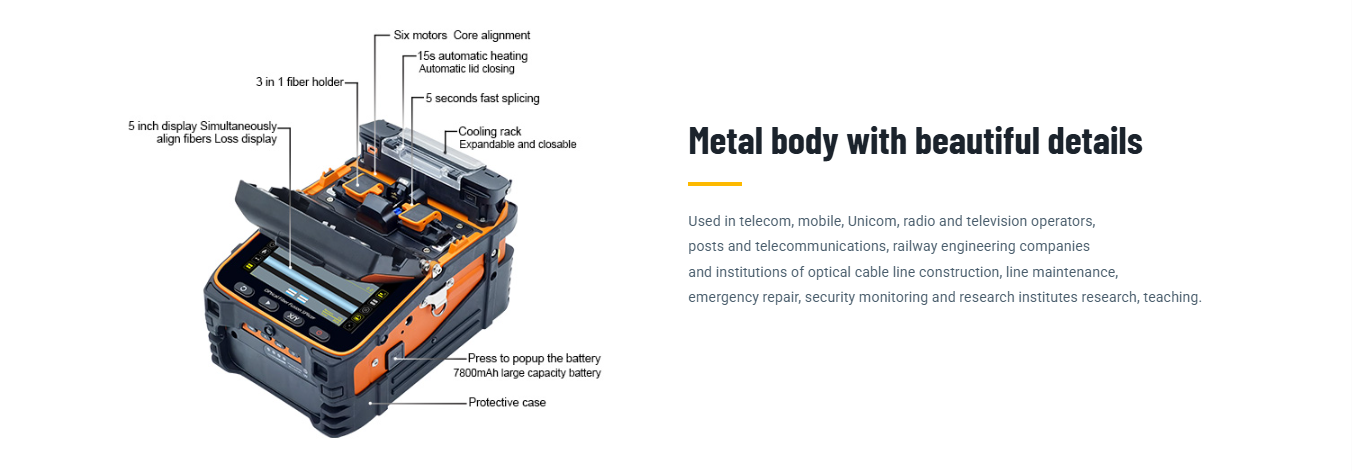

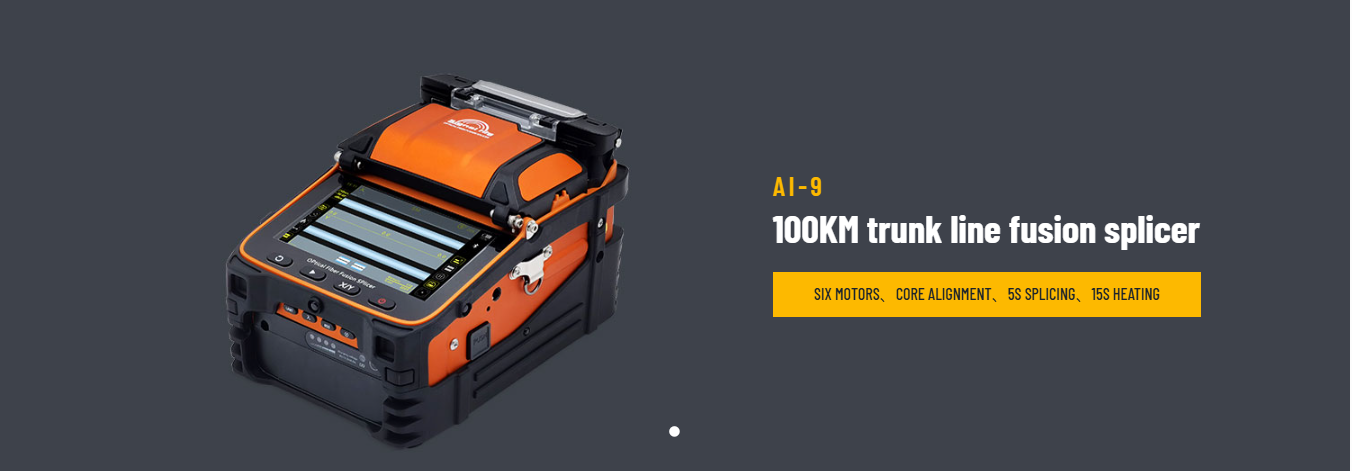

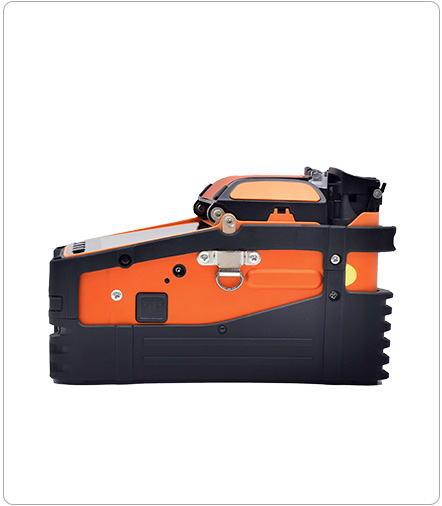

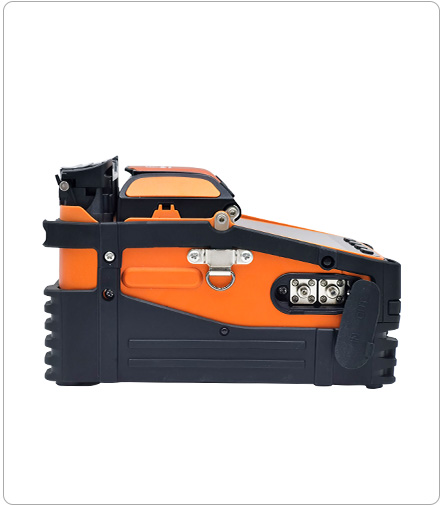

Signalfire fiber splicer AI-9 is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function. Industrial quad-core CPU, fast running speed, 5 seconds fast welding, 15 seconds fast heating, 5 inches high resolution LCD screen, 300 times magnification; The working efficiency is 50% higher than that of ordinary welding machine. Large-capacity lithium battery can be heated by fusion of about 260 cores, high altitude, desert, extremely cold and other harsh environment performance is still outstanding.
| Fiber alignment | Core/cladding |
|---|---|
| Motor number | 6 motors |
| Splicing time | 5s |
| Heating mode | 15s, can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber. |
| Cladding diameter | 80-150μm |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Splicing mode | Automatic focusing core alignment, conventional/high precision welding |
| Splicing way | Automatic, semi-automatic |
| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber, drop cable |

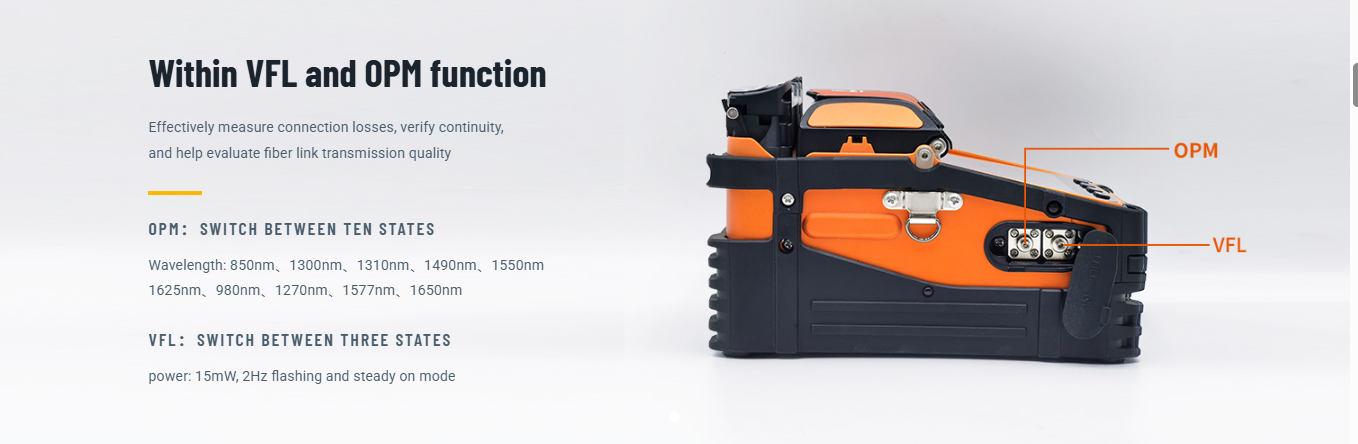

| VFL | The machine comes with: power: 15mW, 2Hz flashing and steady on mode |
| OPM | Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm / Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm ~+3dBm range) |
| Battery capacity | 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260 cores |
| Magnification | 320x (X or Y axis single display) 200x (x and Y axis dual display) |
| Fiber diameter | Coating diameter: 80-150μm / Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-16mm / coating layer 250-1000μm: 16mm |
| Heat shrink tube | 60mm, 50mm, 40mm, 25mm |
| Tensile testing | standard 2N |
| Display | 5-inch color touchscreen |
| Boot time | 1s, boot can enter the working mode |
| Data storage | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Return loss | Better than 60dB |
| Protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| Work environment | Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s |

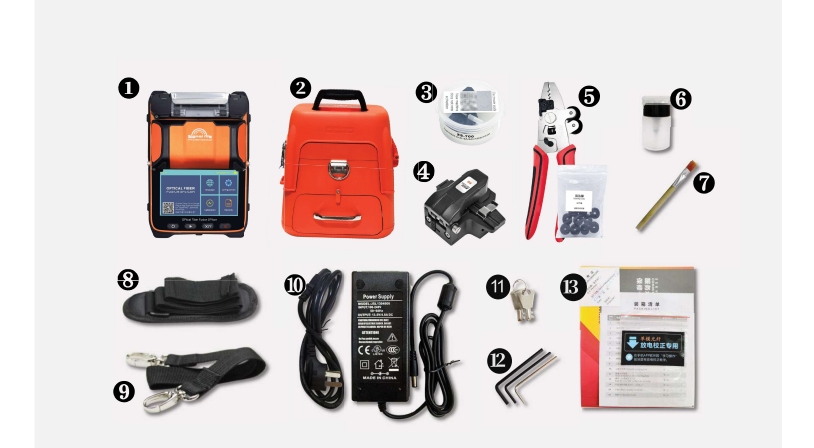

Once you buy our Fusion Splicer machine, we offer original packaging new machine, the products meet industry-related quality standards and commitment to enjoy the following services provided by our company:
