S12

Signalfire One-Step fiber optic cleaver

1、High precision cutting Widely applicable


A、Press type one-step cutting, simple and efficient operation
B、Tungsten steel blade , can cut common quartz (glass) optical fibers in the market.
C、Three in one multifunctional fiber holder, stable clamping of pigtail, optical cables, and drop cable fibers.
D、The fiber holder is detachable and easy to replace.

2、Durable, lightweight, and portable


A、Magnesium-aluminum alloy cleaver has high hardness, anti-collision, and is not easily deformed, ensuring long-term cutting accuracy.

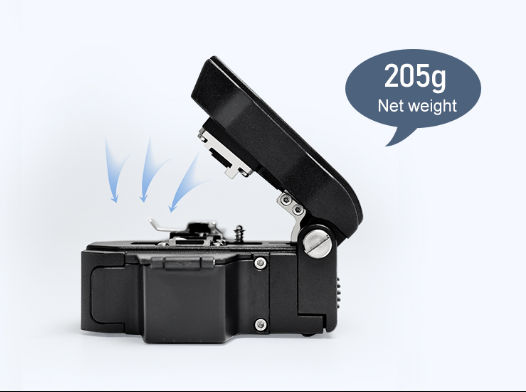

B、The whole cleaver weighs only 205g; with a frosted surface, it is lightweight while ensuring a comfortable hand feel when holding the cleaver.
C、High hardness tungsten steel cleaver blade with a long lifespan, capable of cutting approximately 48000 times.
D、Newly upgraded lock buckle: One click sliding to unlock or lock the upper cover, making it easy to carry.

3、Waste fiber box


A、Embedded installation, compact structure, better overall integrity, convenient for receiving waste fibers while also providing protection for the cleaver holder and blades.
B、Upper cover 270 °external rotation, without blocking the hand during operation。
4、 Bottom dedicated adjustment hole, no disassembly adjustment required
5、Bottom quick detachable cleaning cover, convenient for cleaning the inside of the cleaver.

Fiber Tool

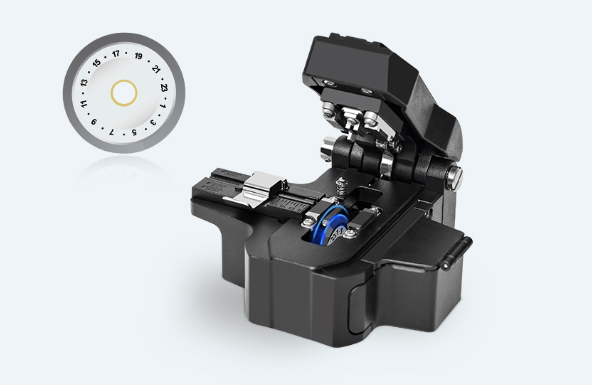

High hardness and wear resistance

High hardness tungsten steel blade

Average cutting angle0.6°

24 cutting points The total service life reaches about 48000 times

Magnesium-aluminum
alloy blade

High hardness, impact resistance, and not easy to deform

Durable, lightweight and portable

Fiber Cleaver
Fiber Tool Feature

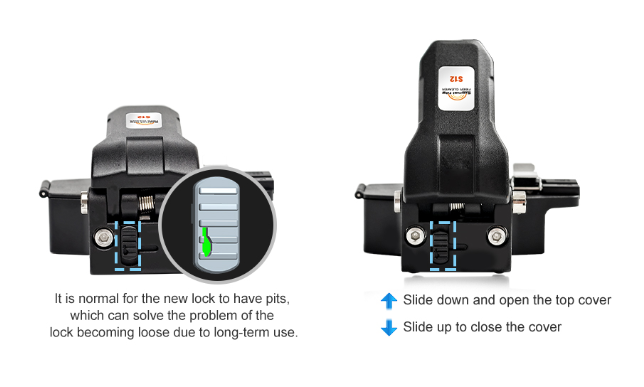

New upgraded
sliding lock

One-touch sliding to unlock or
lock the top cover for easy carrying

3-in-1 universal fixture

Applicable to pigtail (jumper) optical cable (bare fiber) with detachable fiber holder.

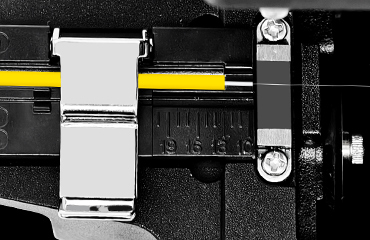

Outer maximum jaw
📅

Jumper fiber(pigtail)

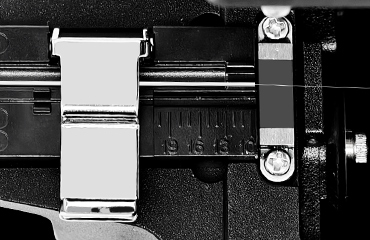

Middle jaw
📅

Pigtail fiber

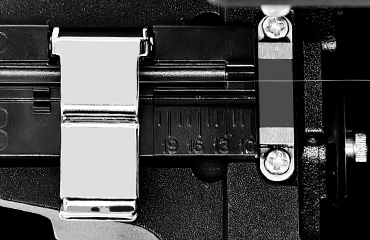

Minimum inner jaw
📅

Bare fiber

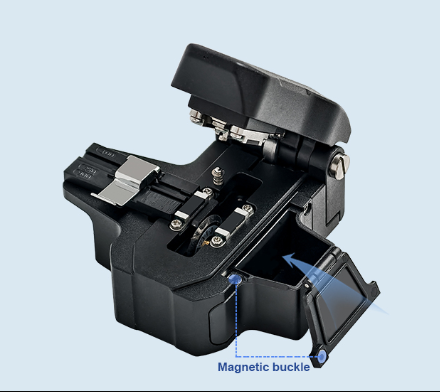

Fiber Scrap Collector

The top cover can be turned outward 270°
to avoid blocking your hands during operation

Magnetic buckle / Convenient switch
Embedded installation, compact structure and better integrity

Wire Stripping Pliers
Fiber Tool

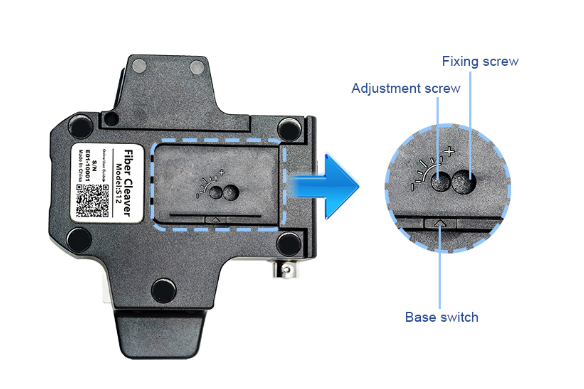

Adjustment without disassembly

Dedicated adjustment hole at the bottom

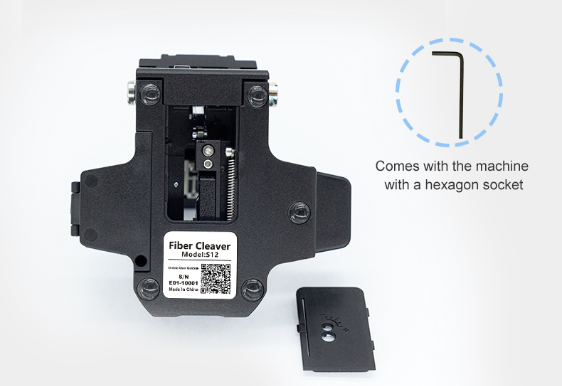

Bottom quick-release cleaning cover

Easy to clean inside the blade

The multi-stage adjustable structure increases the adjustable range of the cleaver. Even if it has been severely bumped, it can still be adjusted.

Wire Stripping Pliers

Specification

Applying Fiber Silica Optical Fiber (Special fixture required for ribbon fiber)
Fiber Type φ0.25 / φ0.9 / φ3.0 / 3.0×2.0mm
Coating Diameter 125ÎŒm
Cleaved Length 9–24mm
Dimensions 85(W) × 75(D) × 45(H) mm
Weight 205g
Average Cutting Angle 0.6°
Blade Life 48,000 times
Blade Type Outer diameter 20.0, inner hole 4.0, thickness 2.0mm
Packaging Box 11(W) × 10(D) × 5.5(H) cm
